Anping Shengjia Hardware Mesh Co.,LTD

Heavy Galvanized Hexagonal Wire Mesh Gabion
Heavy Galvanized Hexagonal Wire Mesh Gabion
Heavy Galvanized Hexagonal Wire Mesh Gabion
Heavy Galvanized Hexagonal Wire Mesh Gabion
Heavy Galvanized Hexagonal Wire Mesh Gabion

Heavy Galvanized Hexagonal Wire Mesh Gabion

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 100 Set/Sets
Delivery Time: 10 Days

Contact Now Add to Basket

Basic Info

    Model No.: Gabion

    Material: Low Carbon Steel Wire, Galvanized Wire

    Application: Protecting Mesh, Cages, Construction Wire Mesh, Control And Guide Of Water Or Flood

    Surface Treatment: Galvanized

    Weave Method: Positive and Negative Twist

    Weave Technique: Twill Weave

    Product Name: Heavy Galvanized Hexagonal Wire Mesh Gabion

    Mesh Size: 6*8/8*10/9*11cm Etc

    Dimension: 2*1*1/2*1*0.5 Etc

    Mesh Wire Diameter: 2.0-4.0mm

    Selvedge Wire Diameter: 3.0-4.0mm

    Lacing Wire Diameter: 2.0-2.2mm

    Tolerance: Within5%

    Certification: ISO9001:2008

Additional Info

    Packaging: packing in bundles with 30sets,60sets,100sets,etc

    Productivity: 1000sets/day

    Brand: Dongrui

    Transportation: Ocean,Land

    Place of Origin: Anping County,Hebei Province,China

    Supply Ability: 1000sets/day

    Certificate: ISO9001:2008

    Port: Xingang

Product Description

Heavy Galvanized Hexagonal Wire Mesh Gabion

Products Description

1. Types: Hexagonal Wire Mesh Gabion boxes/ baskets, Hexagonal Wire Mesh gabion mattresses, Hexagonal Wire Mesh gabion rolls

Hexagonal Wire Mesh gabion

2. Material

The material of the hexagonal wire mesh gabion boxes/baskets are : electric galvanized wire, hot dipped galvanized wire, Heavy hot dipped galvanized wire, Zinc-al5% ally wire,( galfan wire) Zinc-Al 10% wire, PVC Coated + galvanized wire, etc.

Weight of zinc plated:

Electric galvanized: 25-40g/m2

hot dipped galvanized: 65-80g/m2

heavy hot dipped galvanized: 235-300/m2


3. Wire Diameter

Mesh wire is 1.7 mm-4.0mm, generally, we use 2.0mm, 2.2mm, 2.7mm, 3.4mm, 4.0mm

Selvedge wire is thicker than mesh wire, generally, we use 3.4mm-4.0mm

Lacing wire is thinner than mesh wire, generally we use 2.0-2.2mm

4. Mesh size (Hole size):

50*70mm, 60*80mm, 80*100mm, 100*120mm, 100*140mm, 120*150mm etc.

5. Box size( basket size):

6*2*0.23m, 2*1*0.5m, 2*1*1m, 3*1*1m, 4*1*1m, etc. , special size can follow customers' requirements.

6.Specification

Hexagonal Wire Mesh/Netting Gabions

Opening
(mm)

Wire Diameter(Metal Wire)
(mm)

Wire Diameter (PVC Coated)/
Inner/Outside(mm)

Strands

60X80

f2.0-2.8

f2.0/3.0-2.5/3.5

3

80X100

f2.0-3.2

f2.0/3.0-2.8/3.8

3

80X120

f2.0-3.2

f2.0/3.0-2.8/3.8

3

100X120

f2.0-3.4

f2.0/3.0-2.8/3.8

3

100X150

f2.0-3.4

f2.0/3.0-2.8/3.8

3

120X150

f2.0-4.0

f2.0/3.0-3.0/4.0

3

Products Display

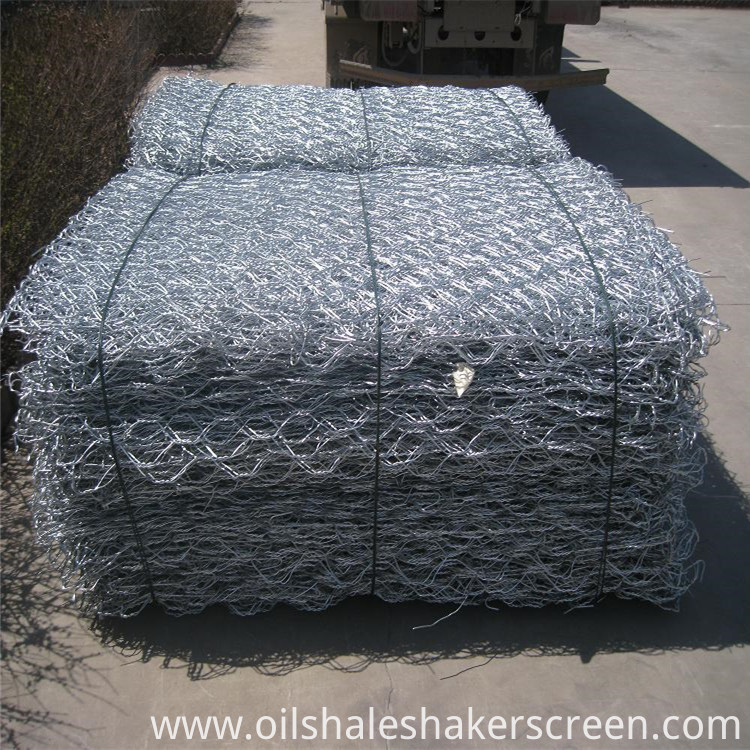

Hexagonal Wire Mesh gabion

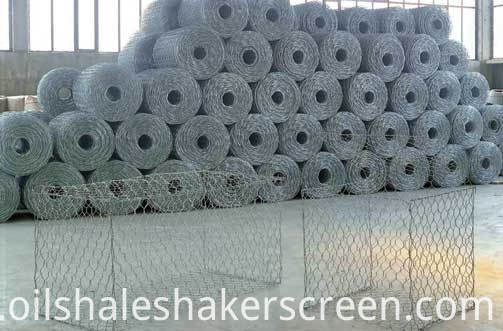

Hexagonal Wire Mesh gabion

Package&Shipping

Usually we packing in bundles with 30sets,60sets,100sets,etc. And other packing we can accept as your request.

Loading in container and shipping by sea.

Hexagonal Wire Mesh gabion

Hexagonal Wire Mesh gabion

Certification

Our products have passed the certification of ISO9001 and ISO14001. We believe that the quality is the soul of an enterprise, therefore we always put the quality as the first consideration.

Certificate

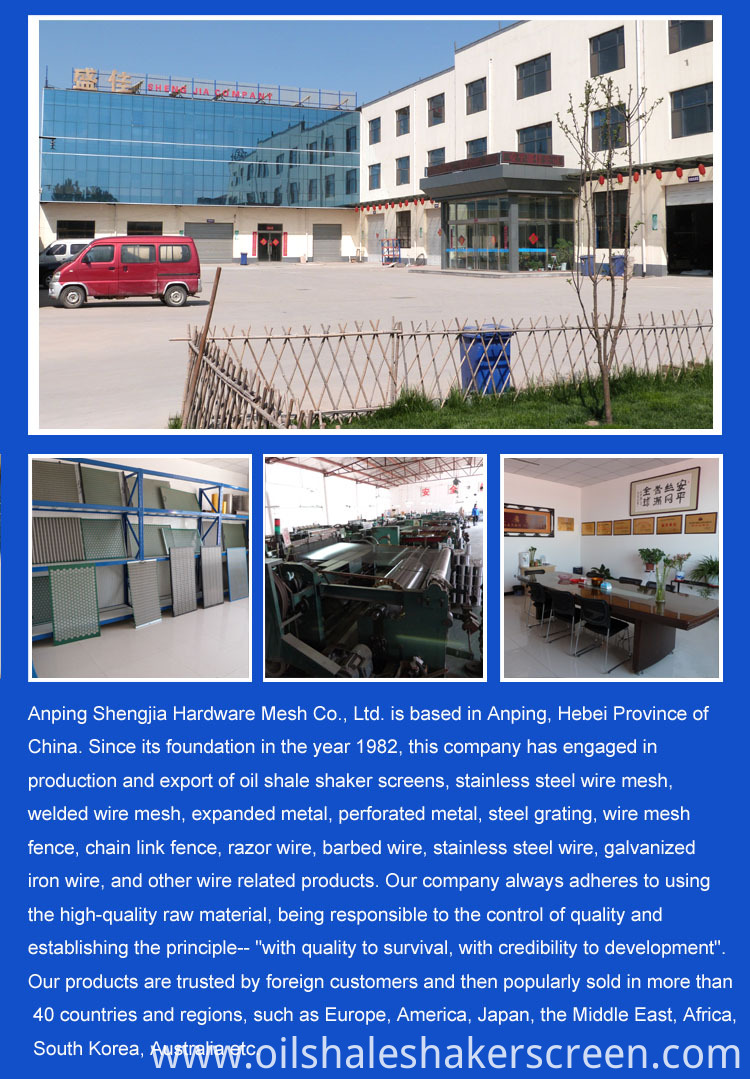

Company Information

Company Profile


Looking for ideal Hexagonal Wire Mesh Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Details of Hexagonal Wire Mesh are quality guaranteed. We are China Origin Factory of Price of Hexagonal Wire Mesh Gabion. If you have any question, please feel free to contact us.

Product Categories : Wire Mesh Series > Hexagonal Wire Mesh
